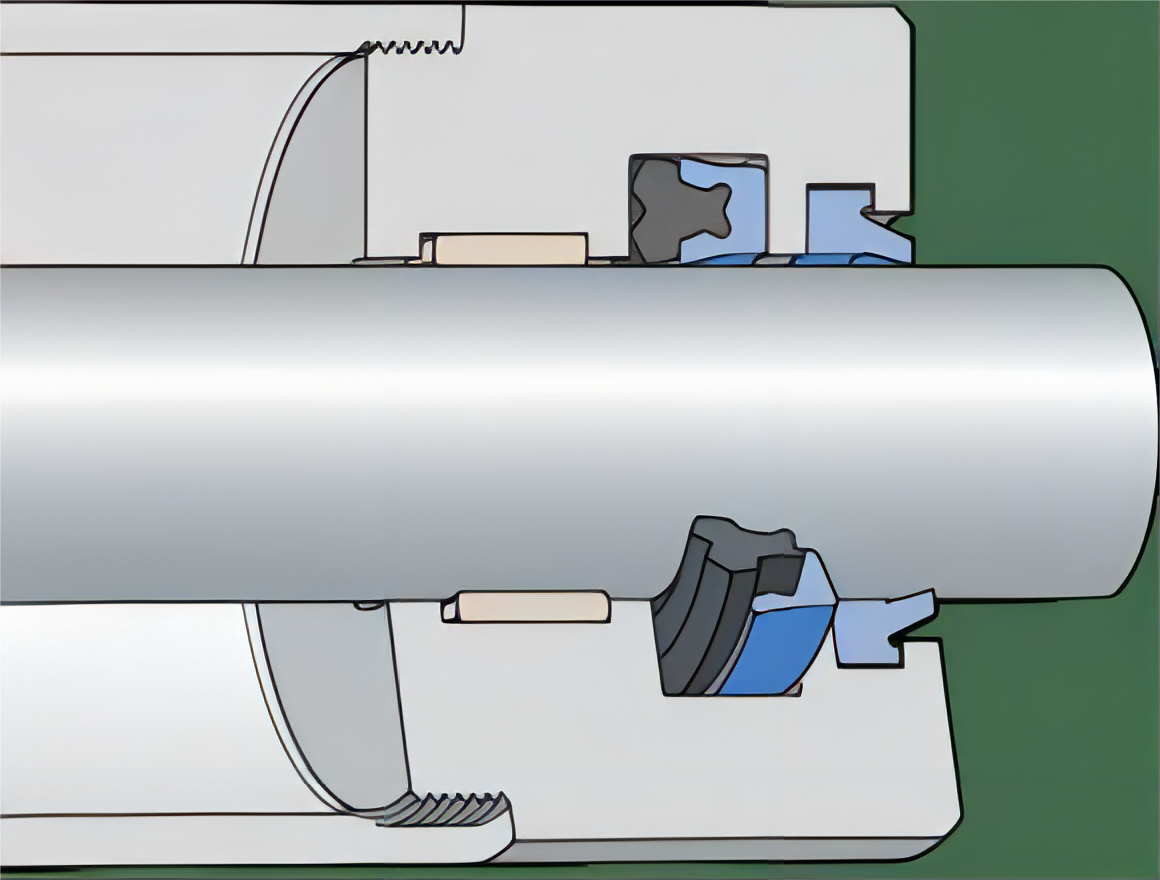

DZ 型密封为混合式活塞杆密封（图 1），将 NBR 主密封和 LUBRITHANE (TPU) 辅助密封组合到了一个密封中。这种组合可以提供良好的低温回弹性，适用于压力达到 400 bar (5800 psi) 的中载到重载应用。DZ 型密封提供公制尺寸和英制尺寸 。根据客户要求，还可以提供带有弹性体 (FLUOROTREL/TPC) 辅助密封的设计。
带一级和二级密封的活塞杆密封
这种活塞杆密封包括一个丁腈橡胶主密封和一个 LUBRITHANE 热塑性聚氨酯辅助密封。 丁腈橡胶主密封唇可改善长期的密封性能，并具有更强的能力来承受活塞杆和缸头之间较大的径向偏差。
- 卓越的低温和低压密封性能
- 能承受高达400 bar (5 800 psi)压力
- 卓越的活塞杆径向偏差的随动能力
- 可提供公制和英制尺寸
| 制造商型号 | 活塞杆直径 d[mm] | 轴承座孔径 D[mm] | 轴承座宽度 L[mm] | 最大运行压力 max.[bar] | 最大运行温度 T6max.[°C] | 在线购买 |
|---|---|---|---|---|---|---|
| DZ125-187-187-E2F | 4.75 | 11.1 | 5.22 | 400 | 120 | |
| DZ125-187-250-E2F | 4.75 | 11.1 | 6.99 | 400 | 120 | |
| DZ250-375-375-E2F | 9.53 | 22.23 | 10.48 | 400 | 120 | |
| DZ125-500-250-E2F | 12.7 | 19.05 | 6.99 | 400 | 120 | |
| DZ187-500-312-E2F | 12.7 | 22.2 | 8.72 | 400 | 120 | |
| DZ156-625-250-E2F | 15.88 | 23.8 | 6.99 | 400 | 120 | |
| DZ125-750-187-E2F | 19.05 | 25.4 | 5.22 | 400 | 120 | |
| DZ125-750-250-E2F | 19.05 | 25.4 | 6.99 | 400 | 120 | |
| DZ187-750-312-E2F | 19.05 | 28.55 | 8.72 | 400 | 120 | |
| DZ125-875-250-E2F | 22.23 | 28.58 | 6.99 | 400 | 120 | |
| DZ-25X33X7.2-E2F | 25 | 33 | 7.2 | 400 | 120 | |
| DZ125-1000-250-E2F | 25.4 | 31.75 | 6.99 | 400 | 120 | |
| DZ187-1000-312-E2F | 25.4 | 34.9 | 8.72 | 400 | 120 | |
| DZ250-1000-375-E2F | 25.4 | 38.1 | 10.48 | 400 | 120 | |
| DZ125-1125-250-E2F | 28.58 | 34.93 | 6.99 | 400 | 120 | |
| DZ187-1125-312-E2F | 28.58 | 38.07 | 8.72 | 400 | 120 | |
| DZ250-1125-375-E2F | 28.58 | 41.28 | 10.48 | 400 | 120 | |
| DZ-30X40X9.9-E2F | 30 | 40 | 9.9 | 400 | 120 | |
| DZ187-1187-312-E2F | 30.15 | 39.65 | 8.72 | 400 | 120 | |
| DZ125-1250-250-E2F | 31.75 | 38.1 | 6.99 | 400 | 120 | |
| DZ187-1250-312-E2F | 31.75 | 41.25 | 8.72 | 400 | 120 | |
| DZ250-1250-375-E2F | 31.75 | 44.45 | 10.48 | 400 | 120 | |
| DZ250-1250-562-E2F | 31.75 | 44.45 | 15.7 | 400 | 120 | |
| DZ375-1250-625-E2F | 31.75 | 50.8 | 17.46 | 400 | 120 | |
| DZ125-1375-312-E2F | 34.93 | 41.28 | 8.72 | 400 | 120 | |
| DZ187-1375-312-E2F | 34.93 | 44.42 | 8.72 | 400 | 120 | |
| DZ250-1375-375-E2F | 34.93 | 47.63 | 10.48 | 400 | 120 | |
| DZ-35X45X9.9-E2F | 35 | 45 | 9.9 | 400 | 120 | |
| DZ125-1500-250-E2F | 38.1 | 44.45 | 6.99 | 400 | 120 | |
| DZ156-1500-312-E2F | 38.1 | 46.02 | 8.72 | 400 | 120 | |
| DZ187-1500-312-E2F | 38.1 | 47.6 | 8.72 | 400 | 120 | |
| DZ187-1500-375-E2F | 38.1 | 47.6 | 10.48 | 400 | 120 | |
| DZ250-1500-375-E2F | 38.1 | 50.8 | 10.48 | 400 | 120 | |
| DZ250-1500-562-E2F | 38.1 | 50.8 | 15.7 | 400 | 120 | |
| DZ-40X50X8-E2F | 40 | 50 | 8 | 400 | 120 | |
| DZ-40X50X9.9-E2F | 40 | 50 | 9.9 | 400 | 120 | |
| DZ187-1625-312-E2F | 41.28 | 50.77 | 8.72 | 400 | 120 | |
| DZ187-1625-375-E2F | 41.28 | 50.77 | 10.48 | 400 | 120 | |
| DZ250-1625-375-E2F | 41.28 | 53.98 | 10.48 | 400 | 120 | |
| DZ125-1750-250-E2F | 44.45 | 50.8 | 6.99 | 400 | 120 | |
| DZ187-1750-312-E2F | 44.45 | 53.95 | 8.72 | 400 | 120 | |
| DZ187-1750-375-E2F | 44.45 | 53.95 | 10.48 | 400 | 120 | |
| DZ250-1750-375-E2F | 44.45 | 57.15 | 10.48 | 400 | 120 | |
| DZ375-1750-375-E2F | 44.45 | 63.5 | 10.48 | 400 | 120 | |
| DZ375-1750-750-E2F | 44.45 | 63.5 | 20.96 | 400 | 120 | |
| DZ-45X55X9.9-E2F | 45 | 55 | 9.9 | 400 | 120 | |
| DZ187-1875-312-E2F | 47.63 | 57.12 | 8.72 | 400 | 120 | |
| DZ250-1875-375-E2F | 47.63 | 60.33 | 10.48 | 400 | 120 | |
| DZ-50X60X9.9-E2F | 50 | 60 | 9.9 | 400 | 120 | |
| DZ187-2000-312-E2F | 50.8 | 60.3 | 8.72 | 400 | 120 | |
| DZ187-2000-375-E2F | 50.8 | 60.3 | 10.48 | 400 | 120 | |
| DZ250-2000-375-E2F | 50.8 | 63.5 | 10.48 | 400 | 120 | |
| DZ250-2000-562-E2F | 50.8 | 63.5 | 15.7 | 400 | 120 | |
| DZ187-2125-375-E2F | 53.98 | 63.47 | 10.48 | 400 | 120 | |
| DZ-55X65X9.9-E2F | 55 | 65 | 9.9 | 400 | 120 | |
| DZ187-2250-312-E2F | 57.15 | 66.65 | 8.72 | 400 | 120 | |
| DZ187-2250-375-E2F | 57.15 | 66.65 | 10.48 | 400 | 120 | |
| DZ250-2250-375-E2F | 57.15 | 69.85 | 10.48 | 400 | 120 | |
| DZ312-2250-500-E2F | 57.15 | 73 | 13.97 | 400 | 120 | |
| DZ-60X70X9.9-E2F | 60 | 70 | 9.9 | 400 | 120 | |
| DZ187-2375-312-E2F | 60.33 | 69.82 | 8.72 | 400 | 120 | |
| DZ250-2375-375-E2F | 60.33 | 73.03 | 10.48 | 400 | 120 | |
| DZ187-2500-312-E2F | 63.5 | 73 | 8.72 | 400 | 120 | |
| DZ187-2500-375-E2F | 63.5 | 73 | 10.48 | 400 | 120 | |
| DZ250-2500-375-E2F | 63.5 | 76.2 | 10.48 | 400 | 120 | |
| DZ312-2500-500-E2F | 63.5 | 79.35 | 13.97 | 400 | 120 | |
| DZ375-2500-625-E2F | 63.5 | 82.55 | 17.46 | 400 | 120 | |
| DZ-65X75X9.9-E2F | 65 | 75 | 9.9 | 400 | 120 | |
| DZ250-2625-375-E2F | 66.68 | 79.38 | 10.48 | 400 | 120 | |
| DZ187-2750-312-E2F | 69.85 | 79.35 | 8.72 | 400 | 120 | |
| DZ250-2750-375-E2F | 69.85 | 82.55 | 10.48 | 400 | 120 | |
| DZ312-2750-500-E2F | 69.85 | 85.7 | 13.97 | 400 | 120 | |
| DZ312-2750-562-E2F | 69.85 | 85.7 | 15.7 | 400 | 120 | |
| DZ375-2750-625-E2F | 69.85 | 88.9 | 17.46 | 400 | 120 | |
| DZ-70X80X9.9-E2F | 70 | 80 | 9.9 | 400 | 120 | |
| DZ250-2875-375-E2F | 73.03 | 85.73 | 10.48 | 400 | 120 | |
| DZ-75X85X9.9-E2F | 75 | 85 | 9.9 | 400 | 120 | 点击购买 |
| DZ187-3000-312-E2F | 76.2 | 85.7 | 8.72 | 400 | 120 | |
| DZ187-3000-375-E2F | 76.2 | 85.7 | 10.48 | 400 | 120 | |
| DZ250-3000-375-E2F | 76.2 | 88.9 | 10.48 | 400 | 120 | |
| DZ250-3000-562-E2F | 76.2 | 88.9 | 15.7 | 400 | 120 | |
| DZ312-3000-500-E2F | 76.2 | 92.05 | 13.97 | 400 | 120 | |
| DZ375-3000-625-E2F | 76.2 | 95.25 | 17.46 | 400 | 120 | |
| DZ375-3000-875-E2F | 76.2 | 95.25 | 24.45 | 400 | 120 | |
| DZ250-3125-375-E2F | 79.38 | 92.08 | 10.48 | 400 | 120 | |
| DZ-80X90X9.9-E2F | 80 | 90 | 9.9 | 400 | 120 | |
| DZ187-3187-375-E2F | 80.95 | 90.45 | 10.48 | 400 | 120 | |
| DZ187-3250-312-E2F | 82.55 | 92.05 | 8.72 | 400 | 120 | |
| DZ250-3250-375-E2F | 82.55 | 95.25 | 10.48 | 400 | 120 | |
| DZ312-3250-500-E2F | 82.55 | 98.4 | 13.97 | 400 | 120 | |
| DZ375-3250-625-E2F | 82.55 | 101.6 | 17.46 | 400 | 120 | |
| DZ-85X100X13.8-E2F | 85 | 100 | 13.8 | 400 | 120 | |
| DZ250-3375-375-E2F | 85.73 | 98.43 | 10.48 | 400 | 120 | |
| DZ312-3375-500-E2F | 85.73 | 101.57 | 13.97 | 400 | 120 | |
| DZ187-3500-375-E2F | 88.9 | 98.4 | 10.48 | 400 | 120 | |
| DZ250-3500-375-E2F | 88.9 | 101.6 | 10.48 | 400 | 120 | |
| DZ312-3500-500-E2F | 88.9 | 104.75 | 13.97 | 400 | 120 | |
| DZ375-3500-625-E2F | 88.9 | 107.95 | 17.46 | 400 | 120 | |
| DZ500-3500-750-E2F | 88.9 | 114.3 | 20.96 | 400 | 120 | |
| DZ-90X105X13.2-E2F | 90 | 105 | 13.2 | 400 | 120 | |
| DZ375-3625-625-E2F | 92.08 | 111.13 | 17.46 | 400 | 120 | |
| DZ375-3625-875-E2F | 92.08 | 111.13 | 24.45 | 400 | 120 | |
| DZ250-3750-375-E2F | 95.25 | 107.95 | 10.48 | 400 | 120 | |
| DZ250-3750-562-E2F | 95.25 | 107.95 | 15.7 | 400 | 120 | |
| DZ312-3750-375-E2F | 95.25 | 111.1 | 10.48 | 400 | 120 | |
| DZ312-3750-500-E2F | 95.25 | 111.1 | 13.97 | 400 | 120 | |
| DZ375-3750-625-E2F | 95.25 | 114.3 | 17.46 | 400 | 120 | |
| DZ250-3875-375-E2F | 98.43 | 111.13 | 10.48 | 400 | 120 | |
| DZ-100X115X13.2-E2F | 100 | 115 | 13.2 | 400 | 120 | |
| DZ187-4000-375-E2F | 101.6 | 111.1 | 10.48 | 400 | 120 | |
| DZ250-4000-375-E2F | 101.6 | 114.3 | 10.48 | 400 | 120 | |
| DZ250-4000-562-E2F | 101.6 | 114.3 | 15.7 | 400 | 120 | |
| DZ375-4000-625-E2F | 101.6 | 120.65 | 17.46 | 400 | 120 | |
| DZ375-4000-750-E2F | 101.6 | 120.65 | 20.96 | 400 | 120 | |
| DZ500-4000-750-E2F | 101.6 | 127 | 20.96 | 400 | 120 | |
| DZ-105X120X13.2-E2F | 105 | 120 | 13.2 | 400 | 120 | |
| DZ250-4250-375-E2F | 107.95 | 120.65 | 10.48 | 400 | 120 | |
| DZ312-4250-562-E2F | 107.95 | 123.8 | 15.7 | 400 | 120 | |
| DZ375-4250-625-E2F | 107.95 | 127 | 17.46 | 400 | 120 | |
| DZ250-4500-375-E2F | 114.3 | 127 | 10.48 | 400 | 120 | |
| DZ250-4500-562-E2F | 114.3 | 127 | 15.7 | 400 | 120 | |
| DZ375-4500-625-E2F | 114.3 | 133.35 | 17.46 | 400 | 120 | |
| DZ375-4500-750-E2F | 114.3 | 133.35 | 20.96 | 400 | 120 | |
| DZ250-4625-562-E2F | 117.48 | 130.18 | 15.7 | 400 | 120 | |
| DZ187-4750-375-E2F | 120.65 | 130.15 | 10.48 | 400 | 120 | |
| DZ250-4750-562-E2F | 120.65 | 133.35 | 15.7 | 400 | 120 | |
| DZ375-4750-625-E2F | 120.65 | 139.7 | 17.46 | 400 | 120 | |
| DZ250-5000-375-E2F | 127 | 139.7 | 10.48 | 400 | 120 | |
| DZ250-5000-562-E2F | 127 | 139.7 | 15.7 | 400 | 120 | |
| DZ375-5000-625-E2F | 127 | 146.05 | 17.46 | 400 | 120 | |
| DZ250-5250-562-E2F | 133.35 | 146.05 | 15.7 | 400 | 120 | |
| DZ250-5375-375-E2F | 136.53 | 149.23 | 10.48 | 400 | 120 | |
| DZ187-5500-375-E2F | 139.7 | 149.2 | 10.48 | 400 | 120 | |
| DZ250-5500-375-E2F | 139.7 | 152.4 | 10.48 | 400 | 120 | |
| DZ250-5500-562-E2F | 139.7 | 152.4 | 15.7 | 400 | 120 | |
| DZ375-5500-625-E2F | 139.7 | 158.75 | 17.46 | 400 | 120 | |
| DZ250-5750-375-E2F | 146.05 | 158.75 | 10.48 | 400 | 120 | |
| DZ375-5750-625-E2F | 146.05 | 165.1 | 17.46 | 400 | 120 | |
| DZ250-6000-375-E2F | 152.4 | 165.1 | 10.48 | 400 | 120 | |
| DZ250-6000-562-E2F | 152.4 | 165.1 | 15.7 | 400 | 120 | |
| DZ375-6000-625-E2F | 152.4 | 171.45 | 17.46 | 400 | 120 | |
| DZ500-6000-750-E2F | 152.4 | 177.8 | 20.96 | 400 | 120 | |
| DZ250-6375-500-E2F | 161.93 | 174.63 | 13.97 | 400 | 120 | |
| DZ250-6500-375-E2F | 165.1 | 177.8 | 10.48 | 400 | 120 | |
| DZ250-6500-562-E2F | 165.1 | 177.8 | 15.7 | 400 | 120 | |
| DZ375-6500-625-E2F | 165.1 | 184.15 | 17.46 | 400 | 120 | |
| DZ250-6750-562-E2F | 171.45 | 184.15 | 15.7 | 400 | 120 | |
| DZ250-7000-375-E2F | 177.8 | 190.5 | 10.48 | 400 | 120 | |
| DZ250-7000-562-E2F | 177.8 | 190.5 | 15.7 | 400 | 120 | |
| DZ375-7000-625-E2F | 177.8 | 196.85 | 17.46 | 400 | 120 | |
| DZ500-7000-750-E2F | 177.8 | 203.2 | 20.96 | 400 | 120 | |
| DZ250-7250-375-E2F | 184.15 | 196.85 | 10.48 | 400 | 120 | |
| DZ250-7250-500-E2F | 184.15 | 196.85 | 13.97 | 400 | 120 | |
| DZ312-7250-500-E2F | 184.15 | 200 | 13.97 | 400 | 120 | |
| DZ375-7250-625-E2F | 184.15 | 203.2 | 17.46 | 400 | 120 | |
| DZ375-7500-625-E2F | 190.5 | 209.55 | 17.46 | 400 | 120 | |
| DZ375-7750-500-E2F | 196.85 | 215.9 | 13.97 | 400 | 120 | |
| DZ375-8000-625-E2F | 203.2 | 222.25 | 17.46 | 400 | 120 | |
| DZ500-8000-750-E2F | 203.2 | 228.6 | 20.96 | 400 | 120 | |
| DZ250-8125-375-E2F | 206.38 | 219.08 | 10.48 | 400 | 120 | |
| DZ250-8125-500-E2F | 206.38 | 219.08 | 13.97 | 400 | 120 | |
| DZ250-8125-562-E2F | 206.38 | 219.08 | 15.7 | 400 | 120 | |
| DZ375-8250-625-E2F | 209.55 | 228.6 | 17.46 | 400 | 120 | |
| DZ500-8500-750-E2F | 215.9 | 241.3 | 20.96 | 400 | 120 | |
| DZ312-8875-500-E2F | 225.43 | 241.27 | 13.97 | 400 | 120 | |
| DZ375-9000-625-E2F | 228.6 | 247.65 | 17.46 | 400 | 120 | |
| DZ500-9000-750-E2F | 228.6 | 254 | 20.96 | 400 | 120 | |
| DZ375-9250-562-E2F | 234.95 | 254 | 15.7 | 400 | 120 | |
| DZ375-9250-625-E2F | 234.95 | 254 | 17.46 | 400 | 120 | |
| DZ375-10000-625-E2F | 254 | 273.05 | 17.46 | 400 | 120 | |
| DZ375-10500-625-E2F | 266.7 | 285.75 | 17.46 | 400 | 120 | |
| DZ375-10750-625-E2F | 273.05 | 292.1 | 17.46 | 400 | 120 | |
| DZ375-11000-625-E2F | 279.4 | 298.45 | 17.46 | 400 | 120 | |
| DZ500-11000-750-E2F | 279.4 | 304.8 | 20.96 | 400 | 120 | |
| DZ500-12000-750-E2F | 304.8 | 330.2 | 20.96 | 400 | 120 | |
| DZ375-14000-625-E2F | 355.6 | 374.65 | 17.46 | 400 | 120 |
