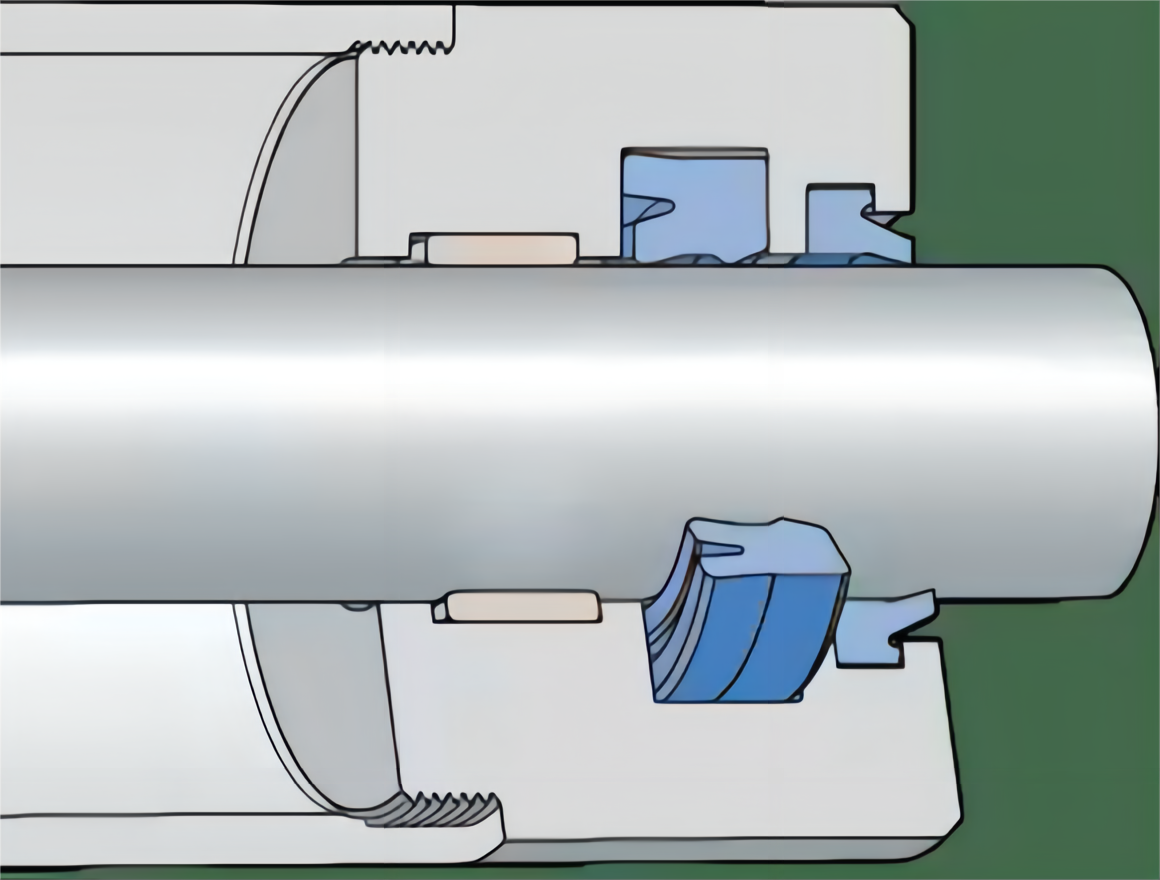

ZBR 型密封为聚氨酯 U 型活塞杆密封（图 1），采用 LUBRITHANE (TPU) 制成，具有双密封唇设计。这种密封适用于压力达到 400 bar (5800 psi) 的中载到重载应用，并提供公制尺寸（→ 尺寸表 [pdf]）和英制尺寸产品。某些公制尺寸适用于符合 ISO 5597:2010 标准的密封沟槽。
液压杆后跟 U 型杯密封
这种活塞杆密封采用带有动态副唇的不承压的 U 形设计。 由 LUBRITHANE 热塑性聚氨酯制成。
- 适用于符合 ISO 5597 的密封沟槽
- 能承受高达 400 bar (5 800 psi)压力
- 适合中高载荷应用
- 可提供公制和英制尺寸
| 制造商型号 | 活塞杆直径 d[mm] | 轴承座孔径 D[mm] | 轴承座宽度 L[mm] | 最大运行压力 max.[bar] | 最大运行温度 T6max.[°C] | 在线购买 |
|---|---|---|---|---|---|---|
| ZBR-14X22X5.7-E6W | 14 | 22 | 5.7 | 400 | 130 | |
| ZBR-16X24X5.7-E6W | 16 | 24 | 5.7 | 400 | 130 | |
| ZBR-18X26X5.7-E6W | 18 | 26 | 5.7 | 400 | 130 | |
| ZBR125-750-250-E6W | 19.05 | 25.4 | 6.99 | 400 | 130 | |
| ZBR-20X28X5.7-E6W | 20 | 28 | 5.7 | 400 | 130 | |
| ZBR-22X30X5.7-E6W | 22 | 30 | 5.7 | 400 | 130 | |
| ZBR-22.4X30X5.7-E6W | 22.4 | 30 | 5.7 | 400 | 130 | |
| ZBR-25X33X5.7-E6W | 25 | 33 | 5.7 | 400 | 130 | |
| ZBR-25X33X8-E6W | 25 | 33 | 8 | 400 | 130 | |
| ZBR125-1000-250-E6W | 25.4 | 31.75 | 6.99 | 400 | 130 | |
| ZBR-28X35.5X5.7-E6W | 28 | 35.5 | 5.7 | 400 | 130 | |
| ZBR-28X36X6.4-E6W | 28 | 36 | 6.4 | 400 | 130 | |
| ZBR125-1125-187-E6W | 28.58 | 34.93 | 5.22 | 400 | 130 | |
| ZBR125-1125-250-E6W | 28.58 | 34.93 | 6.99 | 400 | 130 | |
| ZBR187-1125-312-E6W | 28.58 | 38.07 | 8.72 | 400 | 130 | |
| ZBR-30X38X7.8-E6W | 30 | 38 | 7.8 | 400 | 130 | |
| ZBR-30X40X7-E6W | 30 | 40 | 7 | 400 | 130 | |
| ZBR125-1250-187-E6W | 31.75 | 38.1 | 5.22 | 400 | 130 | |
| ZBR125-1250-197-E6W | 31.75 | 38.1 | 5.5 | 400 | 130 | |
| ZBR125-1250-250-E6W | 31.75 | 38.1 | 6.99 | 400 | 130 | |
| ZBR187-1250-250-E6W | 31.75 | 41.25 | 6.99 | 400 | 130 | |
| ZBR187-1250-312-E6W | 31.75 | 41.25 | 8.72 | 400 | 130 | |
| ZBR-32X40X6.4-E6W | 32 | 40 | 6.4 | 400 | 130 | |
| ZBR-32X42X8.3-E6W | 32 | 42 | 8.3 | 400 | 130 | |
| ZBR125-1375-250-E6W | 34.93 | 41.28 | 6.99 | 400 | 130 | |
| ZBR-35X43X7.8-E6W | 35 | 43 | 7.8 | 400 | 130 | |
| ZBR-35X45X11-E6W | 35 | 45 | 11 | 400 | 130 | |
| ZBR-35X45X7-E6W | 35 | 45 | 7 | 400 | 130 | |
| ZBR125-1500-250-E6W | 38.1 | 44.45 | 6.99 | 400 | 130 | |
| ZBR187-1500-295-E6W | 38.1 | 47.6 | 8.24 | 400 | 130 | |
| ZBR187-1500-312-E6W | 38.1 | 47.6 | 8.72 | 400 | 130 | |
| ZBR187-1500-375-E6W | 38.1 | 47.6 | 10.48 | 400 | 130 | |
| ZBR250-1500-375-E6W | 38.1 | 50.8 | 10.48 | 400 | 130 | |
| ZBR-40X50X11-E6W | 40 | 50 | 11 | 400 | 130 | |
| ZBR-40X50X7-E6W | 40 | 50 | 7 | 400 | 130 | |
| ZBR-40X50X8-E6W | 40 | 50 | 8 | 400 | 130 | |
| ZBR-40X50X8.3-E6W | 40 | 50 | 8.3 | 400 | 130 | |
| ZBR-40X55X11-E6W | 40 | 55 | 11 | 400 | 130 | |
| ZBR-40X55X12-E6W | 40 | 55 | 12 | 400 | 130 | |
| ZBR187-1750-312-E6W | 44.45 | 53.95 | 8.72 | 400 | 130 | |
| ZBR187-1750-375-E6W | 44.45 | 53.95 | 10.48 | 400 | 130 | |
| ZBR250-1750-375-E6W | 44.45 | 57.15 | 10.48 | 400 | 130 | |
| ZBR-45X55X11-E6W | 45 | 55 | 11 | 400 | 130 | |
| ZBR-45X55X7-E6W | 45 | 55 | 7 | 400 | 130 | |
| ZBR-45X55X8.3-E6W | 45 | 55 | 8.3 | 400 | 130 | |
| ZBR-45X60X11-E6W | 45 | 60 | 11 | 400 | 130 | |
| ZBR-45X60X12-E6W | 45 | 60 | 12 | 400 | 130 | |
| ZBR-45X60X12.5-E6W | 45 | 60 | 12.5 | 400 | 130 | |
| ZBR250-1875-375-E6W | 47.63 | 60.33 | 10.48 | 400 | 130 | |
| ZBR-50X60X11-E6W | 50 | 60 | 11 | 400 | 130 | |
| ZBR-50X60X7-E6W | 50 | 60 | 7 | 400 | 130 | |
| ZBR-50X60X8.3-E6W | 50 | 60 | 8.3 | 400 | 130 | |
| ZBR-50X60X8.5-E6W | 50 | 60 | 8.5 | 400 | 130 | |
| ZBR-50X63X11-E6W | 50 | 63 | 11 | 400 | 130 | |
| ZBR-50X65X10-E6W | 50 | 65 | 10 | 400 | 130 | |
| ZBR-50X65X11-E6W | 50 | 65 | 11 | 400 | 130 | |
| ZBR-50X65X12.4-E6W | 50 | 65 | 12.4 | 400 | 130 | |
| ZBR187-2000-312-E6W | 50.8 | 60.3 | 8.72 | 400 | 130 | |
| ZBR187-2000-375-E6W | 50.8 | 60.3 | 10.48 | 400 | 130 | |
| ZBR250-2000-375-E6W | 50.8 | 63.5 | 10.48 | 400 | 130 | |
| ZBR-53X63X7-E6W | 53 | 63 | 7 | 400 | 130 | |
| ZBR-55X65X11-E6W | 55 | 65 | 11 | 400 | 130 | |
| ZBR-55X65X7-E6W | 55 | 65 | 7 | 400 | 130 | |
| ZBR-55X65X9-E6W | 55 | 65 | 9 | 400 | 130 | |
| ZBR-55X68X11-E6W | 55 | 68 | 11 | 400 | 130 | |
| ZBR-55X70X10-E6W | 55 | 70 | 10 | 400 | 130 | |
| ZBR-55X70X11-E6W | 55 | 70 | 11 | 400 | 130 | |
| ZBR-55X70X12.4-E6W | 55 | 70 | 12.4 | 400 | 130 | |
| ZBR-55X75X13-E6W | 55 | 75 | 13 | 400 | 130 | |
| ZBR-56X64X9-E6W | 56 | 64 | 9 | 400 | 130 | |
| ZBR-56X71X12.4-E6W | 56 | 71 | 12.4 | 400 | 130 | |
| ZBR187-2250-335-E6W | 57.15 | 66.65 | 9.36 | 400 | 130 | |
| ZBR250-2250-375-E6W | 57.15 | 69.85 | 10.48 | 400 | 130 | |
| ZBR-60X68X9-E6W | 60 | 68 | 9 | 400 | 130 | |
| ZBR-60X70X11-E6W | 60 | 70 | 11 | 400 | 130 | |
| ZBR-60X70X7-E6W | 60 | 70 | 7 | 400 | 130 | |
| ZBR-60X73X11-E6W | 60 | 73 | 11 | 400 | 130 | |
| ZBR-60X75X10-E6W | 60 | 75 | 10 | 400 | 130 | |
| ZBR-60X80X13-E6W | 60 | 80 | 13 | 400 | 130 | |
| ZBR-63X73X7-E6W | 63 | 73 | 7 | 400 | 130 | |
| ZBR-63X78X12.4-E6W | 63 | 78 | 12.4 | 400 | 130 | |
| ZBR-63X78X13.5-E6W | 63 | 78 | 13.5 | 400 | 130 | |
| ZBR250-2500-375-E6W | 63.5 | 76.2 | 10.48 | 400 | 130 | |
| ZBR-65X75X13-E6W | 65 | 75 | 13 | 400 | 130 | |
| ZBR-65X75X7-E6W | 65 | 75 | 7 | 400 | 130 | |
| ZBR-65X78X11-E6W | 65 | 78 | 11 | 400 | 130 | |
| ZBR-65X80X10-E6W | 65 | 80 | 10 | 400 | 130 | |
| ZBR-65X80X13-E6W | 65 | 80 | 13 | 400 | 130 | |
| ZBR-65X85X13-E6W | 65 | 85 | 13 | 400 | 130 | |
| ZBR250-2625-375-E6W | 66.68 | 79.38 | 10.48 | 400 | 130 | |
| ZBR-70X80X13-E6W | 70 | 80 | 13 | 400 | 130 | |
| ZBR-70X80X7-E6W | 70 | 80 | 7 | 400 | 130 | |
| ZBR-70X83X11-E6W | 70 | 83 | 11 | 400 | 130 | |
| ZBR-70X85X10-E6W | 70 | 85 | 10 | 400 | 130 | |
| ZBR-70X85X11-E6W | 70 | 85 | 11 | 400 | 130 | |
| ZBR-70X85X12.4-E6W | 70 | 85 | 12.4 | 400 | 130 | |
| ZBR-70X90X13-E6W | 70 | 90 | 13 | 400 | 130 | |
| ZBR250-2875-375-E6W | 73.03 | 85.73 | 10.48 | 400 | 130 | |
| ZBR-75X85X7-E6W | 75 | 85 | 7 | 400 | 130 | |
| ZBR-75X88X11-E6W | 75 | 88 | 11 | 400 | 130 | |
| ZBR-75X90X10-E6W | 75 | 90 | 10 | 400 | 130 | |
| ZBR-75X90X11-E6W | 75 | 90 | 11 | 400 | 130 | |
| ZBR-75X95X13-E6W | 75 | 95 | 13 | 400 | 130 | |
| ZBR250-3000-375-E6W | 76.2 | 88.9 | 10.48 | 400 | 130 | |
| ZBR-80X100X13-E6W | 80 | 100 | 13 | 400 | 130 | |
| ZBR-80X90X7-E6W | 80 | 90 | 7 | 400 | 130 | |
| ZBR-80X93X11-E6W | 80 | 93 | 11 | 400 | 130 | |
| ZBR-80X95X10-E6W | 80 | 95 | 10 | 400 | 130 | |
| ZBR-80X95X11-E6W | 80 | 95 | 11 | 400 | 130 | |
| ZBR-80X95X12.4-E6W | 80 | 95 | 12.4 | 400 | 130 | |
| ZBR250-3250-375-E6W | 82.55 | 95.25 | 10.48 | 400 | 130 | |
| ZBR-85X100X10-E6W | 85 | 100 | 10 | 400 | 130 | |
| ZBR-85X100X11-E6W | 85 | 100 | 11 | 400 | 130 | |
| ZBR-85X100X13-E6W | 85 | 100 | 13 | 400 | 130 | |
| ZBR-85X105X13-E6W | 85 | 105 | 13 | 400 | 130 | |
| ZBR250-3500-375-E6W | 88.9 | 101.6 | 10.48 | 400 | 130 | |
| ZBR-90X105X10-E6W | 90 | 105 | 10 | 400 | 130 | |
| ZBR-90X105X11-E6W | 90 | 105 | 11 | 400 | 130 | |
| ZBR-90X105X12.4-E6W | 90 | 105 | 12.4 | 400 | 130 | |
| ZBR-90X110X13-E6W | 90 | 110 | 13 | 400 | 130 | |
| ZBR-95X110X10-E6W | 95 | 110 | 10 | 400 | 130 | |
| ZBR-95X110X11-E6W | 95 | 110 | 11 | 400 | 130 | |
| ZBR-95X115X13-E6W | 95 | 115 | 13 | 400 | 130 | |
| ZBR312-3750-500-E6W | 95.25 | 111.1 | 13.97 | 400 | 130 | |
| ZBR-100X112X15-E6W | 100 | 112 | 15 | 400 | 130 | |
| ZBR-100X115X10-E6W | 100 | 115 | 10 | 400 | 130 | |
| ZBR-100X115X11-E6W | 100 | 115 | 11 | 400 | 130 | |
| ZBR-100X115X12.5-E6W | 100 | 115 | 12.5 | 400 | 130 | |
| ZBR-100X115X13-E6W | 100 | 115 | 13 | 400 | 130 | |
| ZBR-100X120X13-E6W | 100 | 120 | 13 | 400 | 130 | |
| ZBR-100X120X15.5-E6W | 100 | 120 | 15.5 | 400 | 130 | |
| ZBR250-4000-375-E6W | 101.6 | 114.3 | 10.48 | 400 | 130 | |
| ZBR-105X120X10-E6W | 105 | 120 | 10 | 400 | 130 | |
| ZBR-105X120X11-E6W | 105 | 120 | 11 | 400 | 130 | |
| ZBR-105X125X13-E6W | 105 | 125 | 13 | 400 | 130 | |
| ZBR-105X125X16.5-E6W | 105 | 125 | 16.5 | 400 | 130 | |
| ZBR-110X125X10-E6W | 110 | 125 | 10 | 400 | 130 | |
| ZBR-110X125X10.5-E6W | 110 | 125 | 10.5 | 400 | 130 | |
| ZBR-110X125X11-E6W | 110 | 125 | 11 | 400 | 130 | |
| ZBR-110X125X12-E6W | 110 | 125 | 12 | 400 | 130 | |
| ZBR-110X130X11-E6W | 110 | 130 | 11 | 400 | 130 | |
| ZBR-110X130X16.5-E6W | 110 | 130 | 16.5 | 400 | 130 | |
| ZBR-112X125X10-E6W | 112 | 125 | 10 | 400 | 130 | |
| ZBR-115X130X10-E6W | 115 | 130 | 10 | 400 | 130 | |
| ZBR-115X130X11-E6W | 115 | 130 | 11 | 400 | 130 | |
| ZBR-115X135X13-E6W | 115 | 135 | 13 | 400 | 130 | |
| ZBR-115X135X17.5-E6W | 115 | 135 | 17.5 | 400 | 130 | |
| ZBR-118X133X10-E6W | 118 | 133 | 10 | 400 | 130 | |
| ZBR-120X135X10-E6W | 120 | 135 | 10 | 400 | 130 | |
| ZBR-120X140X13-E6W | 120 | 140 | 13 | 400 | 130 | |
| ZBR-120X140X16.5-E6W | 120 | 140 | 16.5 | 400 | 130 | |
| ZBR250-4750-625-E6W | 120.65 | 133.35 | 17.46 | 400 | 130 | |
| ZBR-125X140X10-E6W | 125 | 140 | 10 | 400 | 130 | |
| ZBR-125X145X16.5-E6W | 125 | 145 | 16.5 | 400 | 130 | |
| ZBR250-5000-375-E6W | 127 | 139.7 | 10.48 | 400 | 130 | |
| ZBR250-5000-562-E6W | 127 | 139.7 | 15.7 | 400 | 130 | |
| ZBR-130X145X10-E6W | 130 | 145 | 10 | 400 | 130 | |
| ZBR-130X145X11-E6W | 130 | 145 | 11 | 400 | 130 | |
| ZBR-130X145X12-E6W | 130 | 145 | 12 | 400 | 130 | |
| ZBR-130X145X16.5-E6W | 130 | 145 | 16.5 | 400 | 130 | |
| ZBR-130X150X13-E6W | 130 | 150 | 13 | 400 | 130 | |
| ZBR-130X150X16.5-E6W | 130 | 150 | 16.5 | 400 | 130 | |
| ZBR-130X150X17.5-E6W | 130 | 150 | 17.5 | 400 | 130 | |
| ZBR250-5250-562-E6W | 133.35 | 146.05 | 15.7 | 400 | 130 | |
| ZBR-136X150X10-E6W | 136 | 150 | 10 | 400 | 130 | |
| ZBR250-5500-375-E6W | 139.7 | 152.4 | 10.48 | 400 | 130 | |
| ZBR250-5500-562-E6W | 139.7 | 152.4 | 15.7 | 400 | 130 | |
| ZBR375-5500-625-E6W | 139.7 | 158.75 | 17.46 | 400 | 130 | |
| ZBR-140X155X10-E6W | 140 | 155 | 10 | 400 | 130 | |
| ZBR-140X160X16.5-E6W | 140 | 160 | 16.5 | 400 | 130 | |
| ZBR-145X160X10-E6W | 145 | 160 | 10 | 400 | 130 | |
| ZBR-145X165X16.5-E6W | 145 | 165 | 16.5 | 400 | 130 | |
| ZBR-150X170X16.5-E6W | 150 | 170 | 16.5 | 400 | 130 | |
| ZBR-160X180X16.5-E6W | 160 | 180 | 16.5 | 400 | 130 | |
| ZBR-160X185X19.7-E6W | 160 | 185 | 19.7 | 400 | 130 | |
| ZBR375-6500-625-E6W | 165.1 | 184.15 | 17.46 | 400 | 130 | |
| ZBR500-6500-750-E6W | 165.1 | 190.5 | 20.96 | 400 | 130 | |
| ZBR-170X190X16.5-E6W | 170 | 190 | 16.5 | 400 | 130 | |
| ZBR500-7000-750-E6W | 177.8 | 203.2 | 20.96 | 400 | 130 | |
| ZBR-180X200X13.5-E6W | 180 | 200 | 13.5 | 400 | 130 | |
| ZBR-180X200X16.5-E6W | 180 | 200 | 16.5 | 400 | 130 | |
| ZBR-190X210X16.5-E6W | 190 | 210 | 16.5 | 400 | 130 | |
| ZBR375-7750-625-E6W | 196.85 | 215.9 | 17.46 | 400 | 130 | |
| ZBR-200X220X13.5-E6W | 200 | 220 | 13.5 | 400 | 130 | |
| ZBR-200X220X16.5-E6W | 200 | 220 | 16.5 | 400 | 130 | |
| ZBR375-8000-625-E6W | 203.2 | 222.25 | 17.46 | 400 | 130 | |
| ZBR-210X230X16.5-E6W | 210 | 230 | 16.5 | 400 | 130 | |
| ZBR-220X240X13-E6W | 220 | 240 | 13 | 400 | 130 | |
| ZBR-230X250X13.5-E6W | 230 | 250 | 13.5 | 400 | 130 | |
| ZBR-240X260X16.5-E6W | 240 | 260 | 16.5 | 400 | 130 | |
| ZBR-255X280X20.5-E6W | 255 | 280 | 20.5 | 400 | 130 | 在线购买 |
